BLS 550 HV

SKU: DS-STD-BLS 550 HV

Category: Servos

Available immediately
Delivery time: 3 - 4 Workdays (DE - int. shipments may differ)

129,00 €

incl. 19% VAT , plus . Price valid for shipping to

From	Unit price
4	122,55 €*
10	119,33 €*
20	116,10 €*

Manufacturers: Cat.F

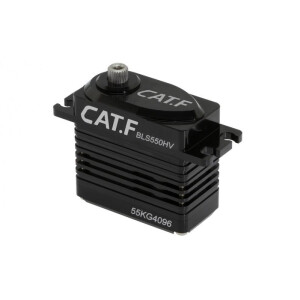

BLS 550 Brushless HV Servo 55.0 Kg - 0.09 sec. / 7.4V / 40 x 20 x 40 mm - 82 gr

Description

The specialized brushless motor crafted for the CAT.F(ast) series of servos is distinguished by its stable operation, high torque, exceptional efficiency, and prolonged lifespan, attributed to advanced manufacturing processes and premium materials.

Advantage

high-quality brushless motor for stable and low-noise operation
High-strength alloy gears, wear-resistant and anti gear crush
CNC-machined aluminum alloy casing for high precision, structural strength, and excellent heat dissipation effect
High-resolution, high-stability, and highly reliable digital control system
High-voltage (PCB)circuit board for wider range of applications
Features dual protection mechanism with stall prevention and soft start System

TECHNICAL FEATURES - BLS550 HV

Servo category - Standard with soft start
Weight - 82r.
Teeth - 25T
Dimensions - 40,0 x 20,0 x 40,0mm (L x W x D)
Resolution 32Bit
Positioning force at 6,0V - 48,0kg/cm
Positioning force at 7,4V - 55,0kg/cm
Positioning force at 8,4V - 60,0kg/cm
Speed at 6,0V - 0,12sec/60°
Speed at 7,4V - 0,09sec/60°
Speed at 8,4V - 0,08sec/60°
Operating voltage - 6,0V-8,4V
Gearbox - all metal
Ball bearing - 2 ball bearings
cable length - 20cm
Motor - Taiwan Brushless Motor
Housing - Aluminiun

Contents: Servo + 4 mounting screws + 1 centre screw

Manufacturer according to GPSR
OTICE TECHNOLOGICAL ENTERPRISE CO., LTD, Gangziwei No.16-12, 745 Tainan City, Taiwan, service@cat-servo.com, https://www.cat-servo.com.tw/en/
Responsible person according to GPSR
Braeckman Modellbau, Krottstr. 27, 52146 Würselen, Nordrhein-Westfalen, Deutschland, info@braeckman-modellbau.de, https://www.braeckman-modellbau.de/
