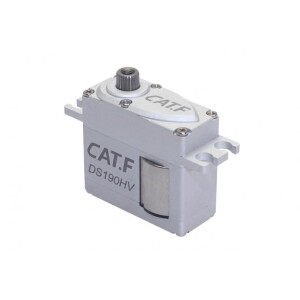

DS 190 HV

Artikelnummer: DS-MED-190 HV

Kategorie: Servos

Sofort verfügbar
Lieferzeit: 3 - 4 Werktage (DE - Ausland abweichend)

69,00 €

inkl. 19% USt. , zzgl. . Preis gültig bei Lieferung nach

ab	Stückpreis
4	65,55 €*
10	63,83 €*
20	62,10 €*

Hersteller: Cat.F

DS 190 Coreless HV Servo 17 Kg/cm - 0.12 sec. / 7.4V / 36 x 17 x 32 mm - 48 gr

Beschreibung

The specialized coreless motor crafted for the CAT.F(ast) series of servos is distinguished by its stable operation, high torque, exceptional efficiency, and prolonged lifespan, attributed to advanced manufacturing processes and premium materials.

Advantage

high-quality coreless motor for stable and low-noise operation
High-strength alloy gears, wear-resistant and anti gear crush
CNC-machined aluminum alloy casing for high precision, structural strength, and excellent heat dissipation effect
High-resolution, high-stability, and highly reliable digital control system
High-voltage (PCB)circuit board for wider range of applications
Features dual protection mechanism with stall prevention and soft start System

TECHNICAL FEATURES - DS190 HV

Servo category - Medium with soft start
Weight - 48gr.
Teeth - 25T
Dimensions - 36,0 x 17,0 x 32,0mm (L x W x D)
Resolution 32Bit
Positioning force at 6,0V - 15,0kg/cm
Positioning force at 7,4V - 17,0kg/cm
Positioning force at 8,4V - 19,0kg/cm
Speed at 6,0V - 0,13sec/60°
Speed at 7,4V - 0,12sec/60°
Speed at 8,4V - 0,11sec/60°
Operating voltage - 6,0V-8,4V
Gearbox - all metal
Ball bearing - 2 ball bearings
cable length - 20cm
Motor - Taiwan Coreless Motor
Housing - Aluminium

Contents: Servo + 4 mounting screws + 1 centre screw + 1 plastic servo washer + 1 plastic servo arm
