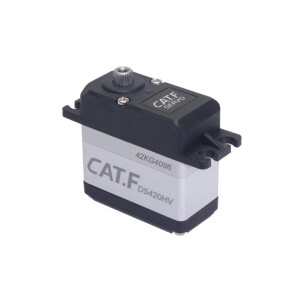

DS 420 HV - Boîtier en aluminium/plastique

DS 420 HV - Boîtier en aluminium/plastique

numéro d'article: DS-STD-420 HV - Alu/Plastik Gehäuse

catégorie: Servos

Disponible immédiatement
Délai de livraison: #MINDELIVERYDAYS# - #MAXDELIVERYDAYS# jours ouvrés (DE - différent à l'étranger)

74,00 €

Incl. 19% T.V.A. , plus . Preis gültig bei Lieferung nach

loin	Prix unitaire
4	70,30 €*
10	68,45 €*
20	66,60 €*

Fabricant: Cat.F

DS 420 Coreless HV Servo 42kg/cm / 0.14 sec/60° / 7.4V / 40x 20 x 40 mm - 73 gr

Description

The specialized coreless motor crafted for the CAT.F(ast) series of servos is distinguished by its stable operation, high torque, exceptional efficiency, and prolonged lifespan, attributed to advanced manufacturing processes and premium materials.

Advantage

high-quality coreless motor for stable and low-noise operation
High-strength alloy gears, wear-resistant and anti gear crush
CNC-machined aluminum alloy casing for high precision, structural strength, and excellent heat dissipation effect
High-resolution, high-stability, and highly reliable digital control system
High-voltage (PCB)circuit board for wider range of applications
Features dual protection mechanism with stall prevention and soft start System

TECHNICAL FEATURES - DS420 HV

Servo category - Standard with soft start
Weight - 73gr.
Teeth - 25T
Dimensions - 40,0 x 20,0 x 40,0mm (L x W x D)
Resolution 32Bit
Positioning force at 6,0V - 38,0kg/cm
Positioning force at 7,4V - 42,0kg/cm
Positioning force at 8,4V - 44,0kg/cm
Speed at 6,0V - 0,16sec/60°
Speed at 7,4V - 0,14sec/60°
Speed at 8,4V - 0,13sec/60°
Operating voltage - 6,0V-8,4V
Gearbox - all metal
Ball bearing - 2 ball bearings
cable length - 20cm
Motor - Taiwan Coreless Motor
Housing - Aluminiun

Contents: Servo + 4 mounting screws + 1 centre screw

Fabricant selon le GPSR
OTICE TECHNOLOGICAL ENTERPRISE CO., LTD, Gangziwei No.16-12, 745 Tainan City, Taiwan, service@cat-servo.com, https://www.cat-servo.com.tw/en/
