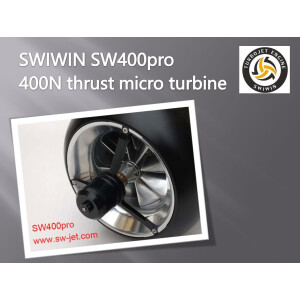

SWIWIN 400 Pro Turbine

SKU: SWIWIN400PRO

Category: Turbine

Currently out of stock

7.249,00 €

incl. 19% VAT , plus . Price valid for shipping to

Manufacturers: SWIWIN Turbojet Engine

Description
Notify me when this item is available

Swiwin-SW300B Turbine with 30kg thrust, Auto-Restart

Highlights:

V3 ECU
Brushless-Starter
Brushless-fuel-pump
Telemetry-compatible – data from the Turbine is transmitted to the receiver (SBUS,XBUS ….)
Telemetry-compatible with Futaba, Spektrum, Jeti and Graupner transmitters
only one 3-wire cable from ECU to turbine
ECU is just a contral central – turbinen data is stored in the turbine
With super fuel-brushless pump, which finely mixes the air in the system with the paraffin and passes it on to the turbine - No more turbine shutdowns due to a little air in the System

Technical Data:

Diameter	: 133mm
Length	: 332mm
Weight	: approx. 2500gr
Thrust	: 300N / 30kg
Consumption	: 820gr/min
RPM	: 38.000 1-/min bis 98.000 1/min
Fuel	: Paraffin or Diesel
Lubrication	: approx. 5% turbinenoil in paraffin / approx. 3% turbinenoil in diesel
WartungsintervallWartungsintervallMaintence intervall	: every 25 hours

Package includes:

Turbine, brushless-fuel-pump, ECU, coloured display modul (GSU), shut-off valve, filter, fuel line PU 4×2,5mm + 6x4mm ,various connection- and connectioncable

Manuel: Swiwin Brushless Turbinen (Englisch)

Manuel settings:
